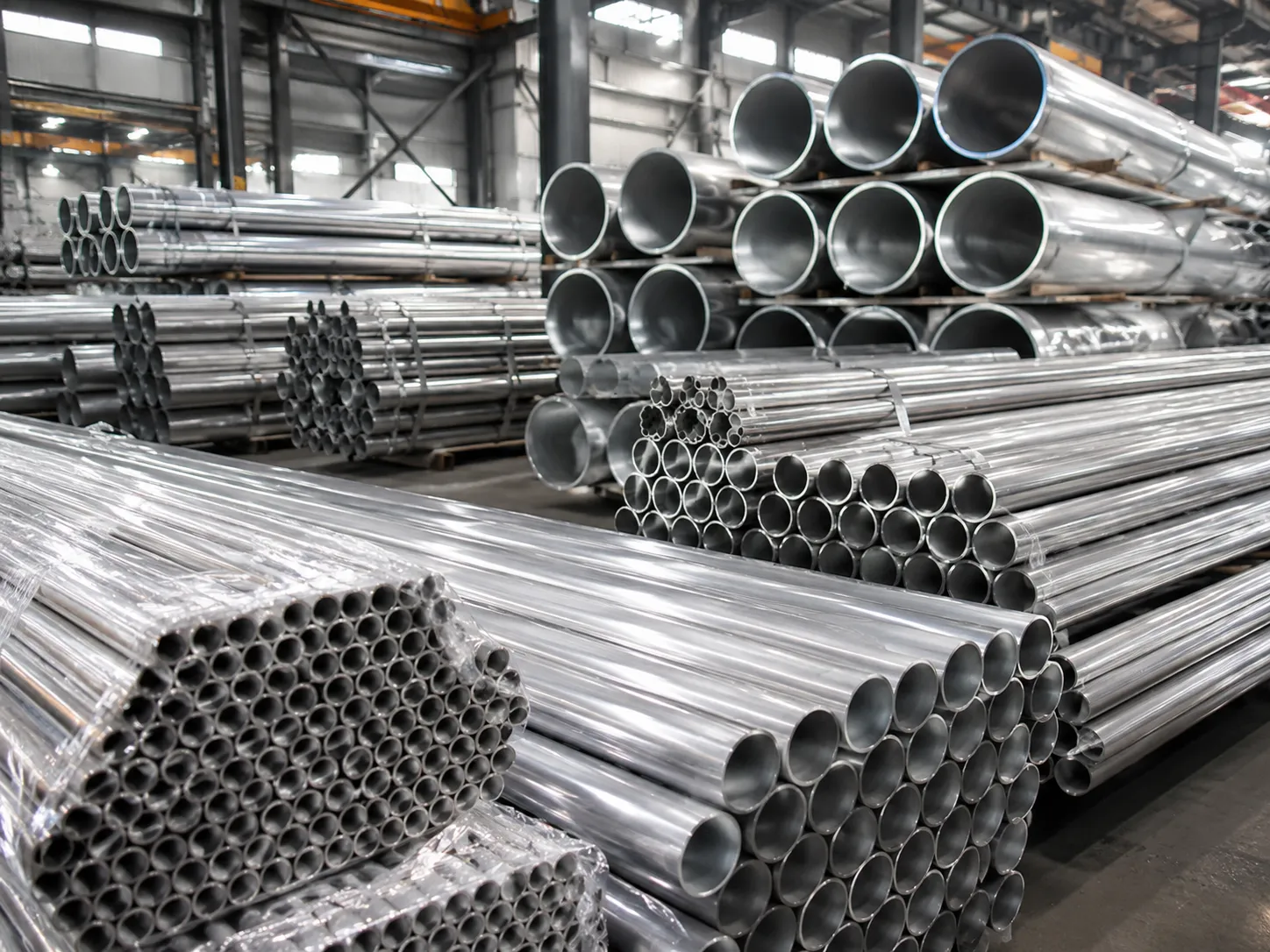

2024 Aluminum Pipe
2024 aluminum pipe is a high-strength aerospace-grade Al-Cu-Mg alloy tube with excellent fatigue resistance, good machinability and a high strength-to-weight ratio for demanding structural applications.
- High-strength 2xxx series aluminum alloy pipe
- Excellent fatigue resistance and dimensional stability
- Common tempers include T3, T4, T6, T351 and T81
- Suitable for aerospace, racing, structural and precision engineering applications
2024
2xxx Al-Cu-Mg
T3 / T4 / T6 / T351 / T81
10mm – 400mm
1mm – 30mm
Mill Finish / Anodized / Alclad
High-Strength Aerospace Grade Aluminum Pipe for Structural Applications
2024 aluminum pipe is a high-strength 2xxx series aluminum-copper-magnesium alloy tube widely used in aerospace, automotive racing, mechanical structures and precision engineering applications. It offers an excellent strength-to-weight ratio, superior fatigue resistance and good machinability.
Gengfei Aluminum supplies 2024 aluminum pipe in T3, T4, T6, T351, T81 and other tempers. Outer diameter, wall thickness, length, surface finish, cutting size and export packaging can be customized according to project requirements.
2024 Aluminum Pipe Overview
2024 aluminum pipe is an aluminum-copper-magnesium alloy tube known for high tensile strength, excellent fatigue resistance and reliable performance in load-bearing structures. It is commonly used where lightweight design and structural integrity are both important.
Compared with general-purpose aluminum tubes, 2024 aluminum pipe provides higher mechanical strength and better fatigue performance. However, its natural corrosion resistance is lower than many 5xxx and 6xxx series alloys, so anodizing, alclad coating or other protective surface treatment is often recommended for exposed environments.
| Product Type | Aluminum Pipe, Aluminum Tube, Custom Cut Tube | Alloy Grade | 2024 |
|---|---|---|---|
| Alloy Series | 2xxx Series Aluminum-Copper-Magnesium Alloy | Available Tempers | T3, T4, T6, T351, T81 and other tempers |
| Outer Diameter | 10mm – 400mm | Wall Thickness | 1mm – 30mm |
| Length | 1m – 6m, custom length available | Surface Finish | Mill finish, anodized, alclad, coated |
| Standards | ASTM B210 / ASTM B241 / EN 573 | Machinability | Excellent |
| Typical Applications | Aircraft structures, aerospace fittings, automotive racing frames, military hardware, structural supports and precision engineering components | ||
2024 Aluminum Pipe Specifications
Specifications can be adjusted based on alloy temper, pipe diameter, wall thickness, length, tolerance, surface treatment and application requirements.
| Parameter | Available Specification | Notes |
|---|---|---|
| Alloy | 2024 | High-strength Al-Cu-Mg aerospace aluminum alloy |
| Temper | T3, T4, T6, T351, T81, etc. | Temper can be selected according to strength and processing requirements |
| Outer Diameter | 10mm – 400mm | Custom sizes available according to project demand |
| Wall Thickness | 1mm – 30mm | Thick-wall and thin-wall pipe options available |
| Length | 1m – 6m | Custom cutting length available |
| Standards | ASTM B210 / ASTM B241 / EN 573 | Other standards can be discussed based on order requirements |
| Surface Finish | Mill finish, anodized, alclad, coated | Protective treatment is recommended for exposed or corrosive environments |
| Tensile Strength | 400 – 500 MPa | Typical reference range, depending on temper and condition |
| Machinability | Excellent | Suitable for cutting, turning, drilling and precision machining |
| Corrosion Resistance | Fair | Anodizing, alclad or coating is recommended for protection |
Key Features of 2024 Aluminum Pipe
2024 aluminum pipe is selected for high-load structures where strength, fatigue performance and weight reduction are critical.
High Strength
Suitable for load-bearing structures and high-performance equipment requiring strong mechanical performance.
Fatigue Resistance
Reliable performance for components exposed to repeated stress, vibration or dynamic loading.
Lightweight Design
Provides an excellent strength-to-weight ratio for aerospace, automotive and structural applications.
Good Machinability
Works well for turning, cutting, drilling and precision machining of engineered components.
Dimensional Stability
Suitable for precision parts requiring stable geometry and consistent wall thickness.
Surface Protection
Anodized, alclad or coated surfaces can be supplied to improve corrosion protection.
Custom Supply
Outer diameter, wall thickness, length and surface finish can be customized for project use.
Recyclable Material
Aluminum is recyclable and suitable for industrial projects with material efficiency requirements.
Applications of 2024 Aluminum Pipe
2024 aluminum pipe is used in demanding structures where fatigue resistance, high strength and lightweight performance are more important than natural corrosion resistance.

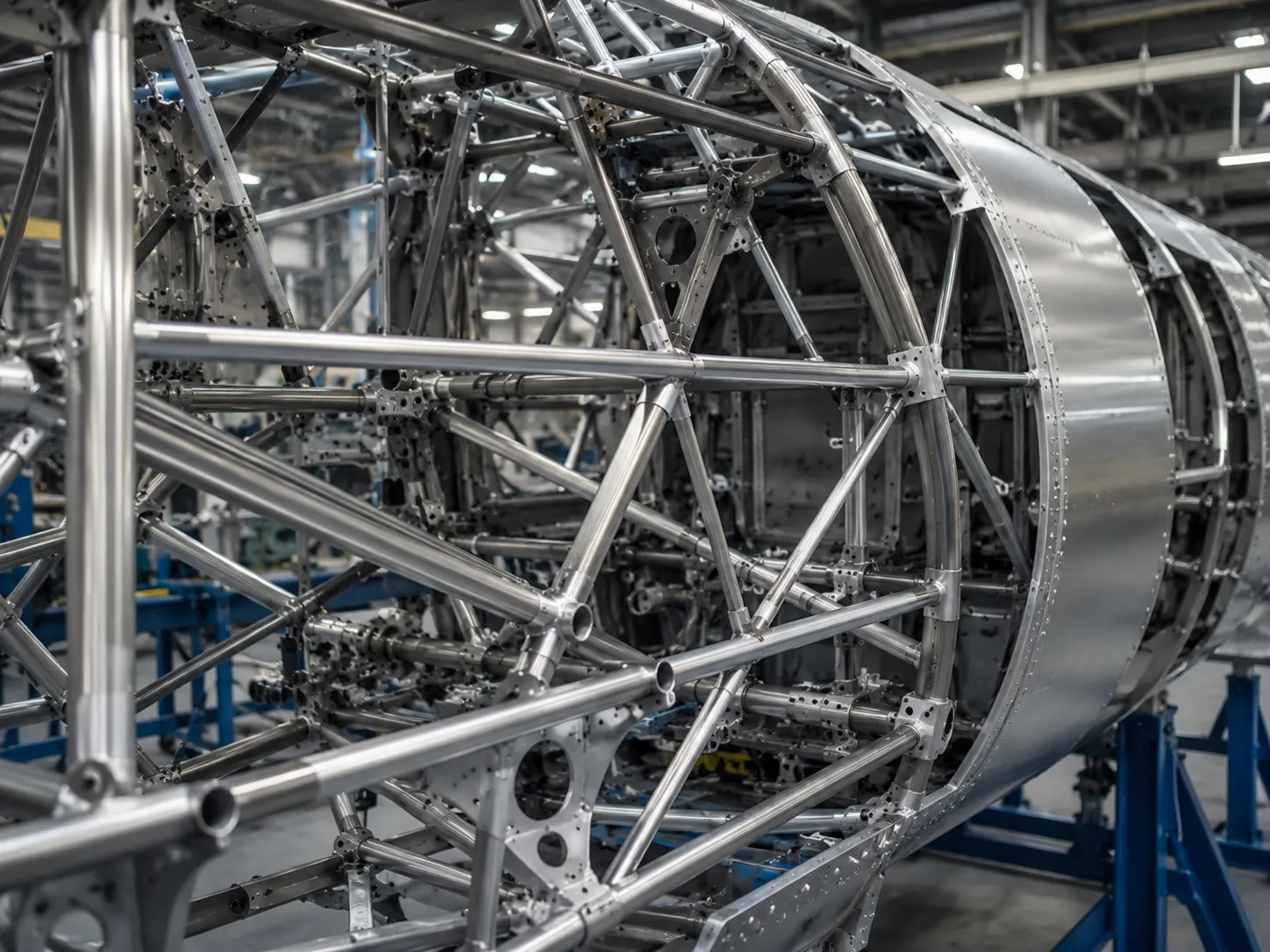

- Aircraft Structures: fuselage frames, wing structures, support members and lightweight tubular assemblies.
- Aerospace Components: fittings, brackets, mechanical structures and precision load-bearing parts.
- Automotive Racing: racing frames, lightweight supports and high-performance mechanical components.
- Industrial Equipment: structural supports in machines and equipment requiring strength and reduced weight.
- Military Hardware: engineered components, gear structures and high-load assemblies.
- Precision Engineering: machined tubular components and dimensionally stable parts.

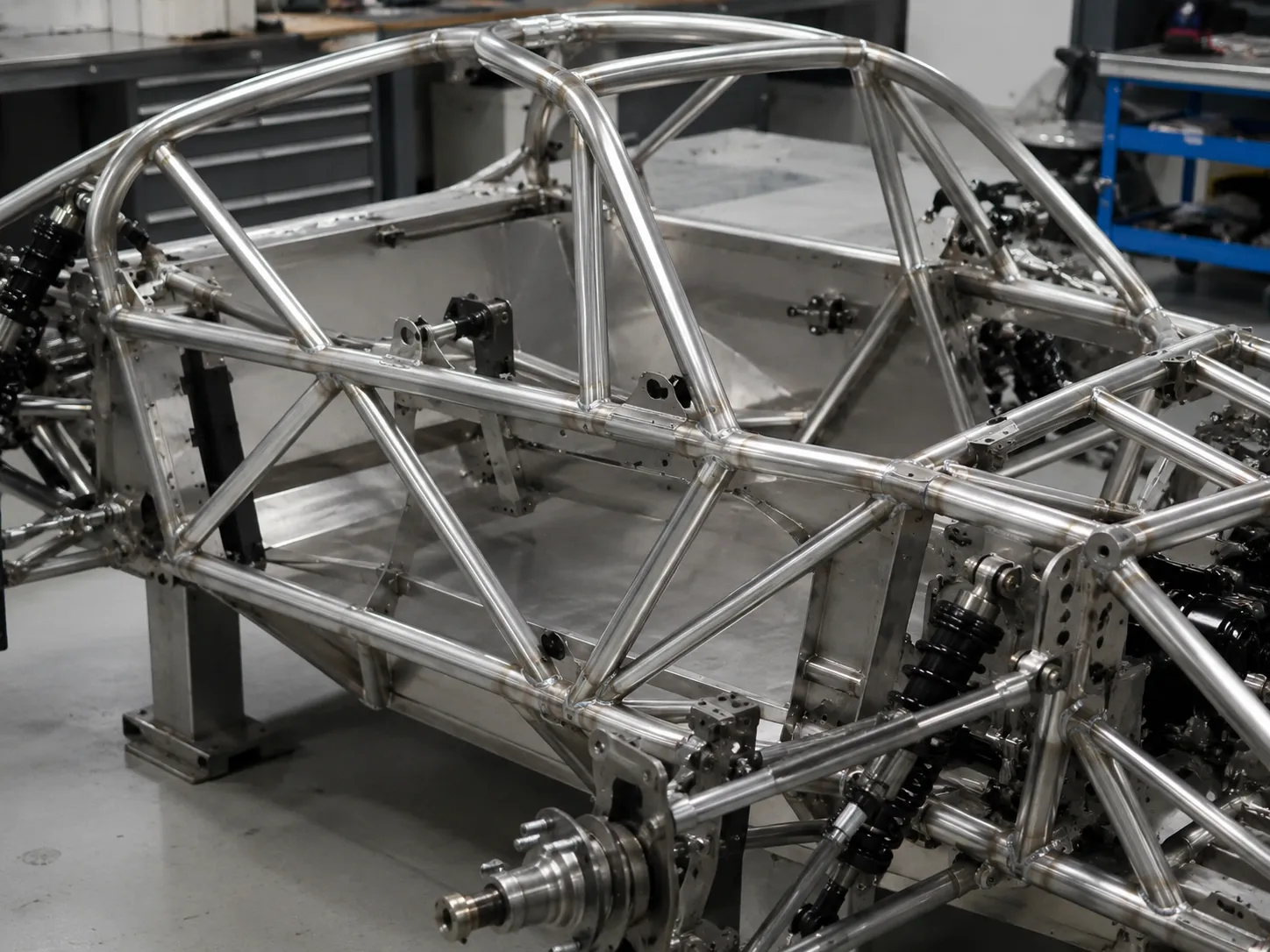

High Strength-to-Weight Ratio for Performance Structures
In racing, aerospace and high-performance equipment, reducing weight while maintaining structural reliability is essential. 2024 aluminum pipe provides high mechanical strength and good fatigue performance, making it a practical material for tubular frames and engineered support structures.
- Suitable for lightweight tubular frames
- Good fatigue resistance for repeated loading
- High strength compared with general-purpose aluminum pipe
- Can be machined into precision structural components
- Surface protection available for improved corrosion resistance

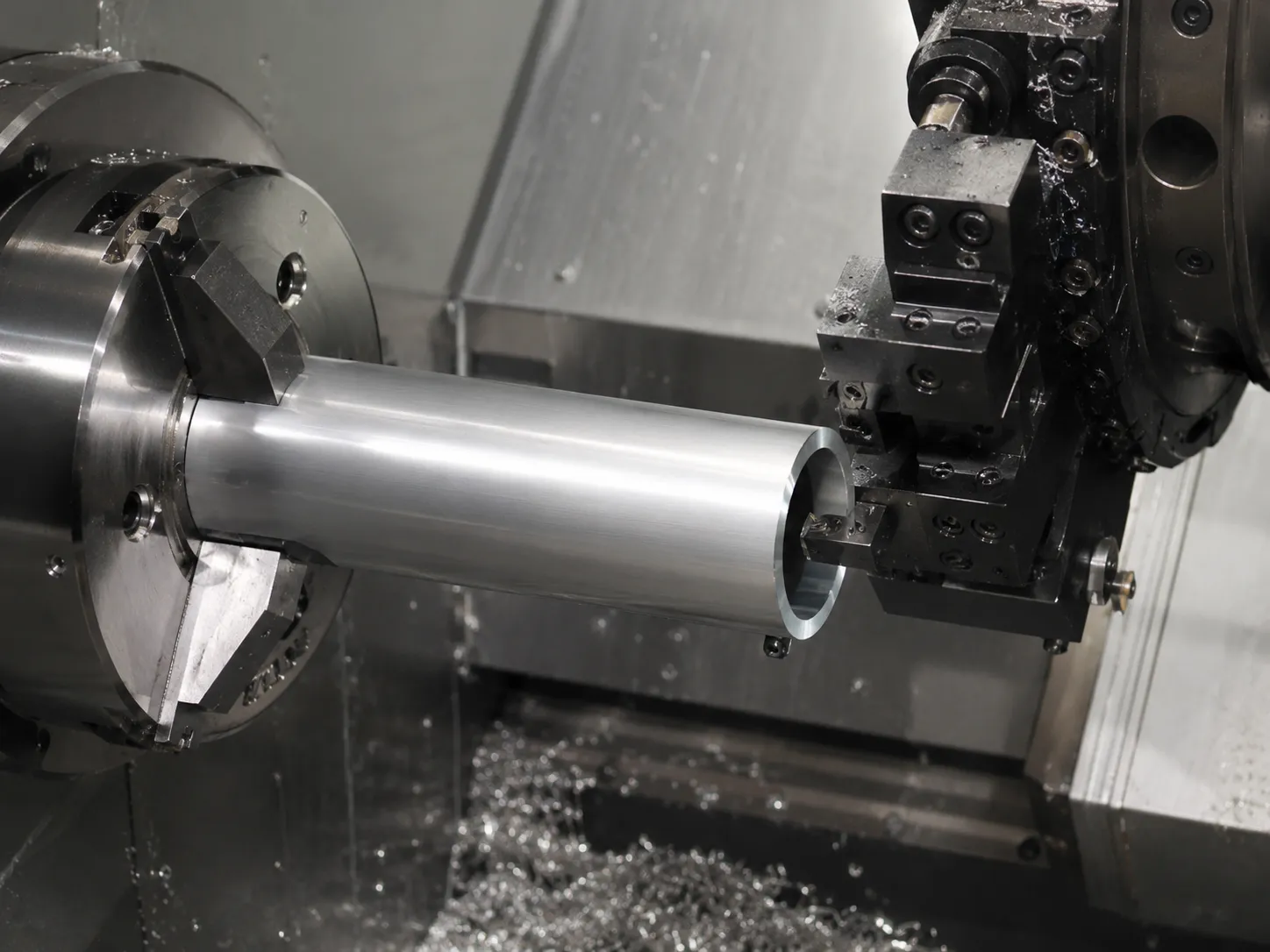

Machining, Cutting and Custom Processing
2024 aluminum pipe has excellent machinability and can be processed into precision components for aerospace, automotive, equipment manufacturing and engineering applications. Custom cutting and surface treatment support can help reduce downstream processing work.
- Custom cutting to required length
- Turning, drilling and end machining support
- Deburring and edge processing options
- Custom outer diameter and wall thickness supply
- Anodized, alclad or coated surface options
- Protective packaging for finished pipe and tube products
Surface Protection for 2024 Aluminum Pipe
2024 aluminum alloy is mainly selected for strength and fatigue resistance, but its corrosion resistance is not as strong as 5xxx or 6xxx series aluminum. For outdoor, humid or exposed environments, protective surface treatment is recommended.
- Mill finish: suitable for general machining and indoor use.
- Anodizing: improves surface protection and appearance.
- Alclad surface: provides improved corrosion protection with a bonded protective aluminum layer.
- Coating: suitable for projects requiring additional environmental protection.
- Protective packaging: helps reduce surface scratches during storage and transportation.
2024 Aluminum Pipe Compared with 6061 and 7075
Selecting the right aluminum pipe depends on strength, fatigue resistance, corrosion resistance, machinability and application environment.
| Alloy | Main Feature | Strength | Fatigue Resistance | Corrosion Resistance | Typical Use |
|---|---|---|---|---|---|
| 2024 | Aerospace-grade Al-Cu-Mg alloy with excellent fatigue resistance | High | Excellent | Fair, surface protection recommended | Aircraft structures, racing frames, precision load-bearing parts |
| 6061 | General-purpose heat-treatable aluminum alloy with balanced performance | Medium to High | Good | Good | Frames, machinery parts, general structural tubing |
| 7075 | Very high-strength aluminum alloy for demanding applications | Very High | Good | Lower than 6061, protection often required | Aerospace, high-end molds, racing and high-stress components |
| 5052 | Excellent corrosion resistance and good formability | Medium | Good | Excellent | Marine, tanks, sheet metal and corrosion-resistant structures |

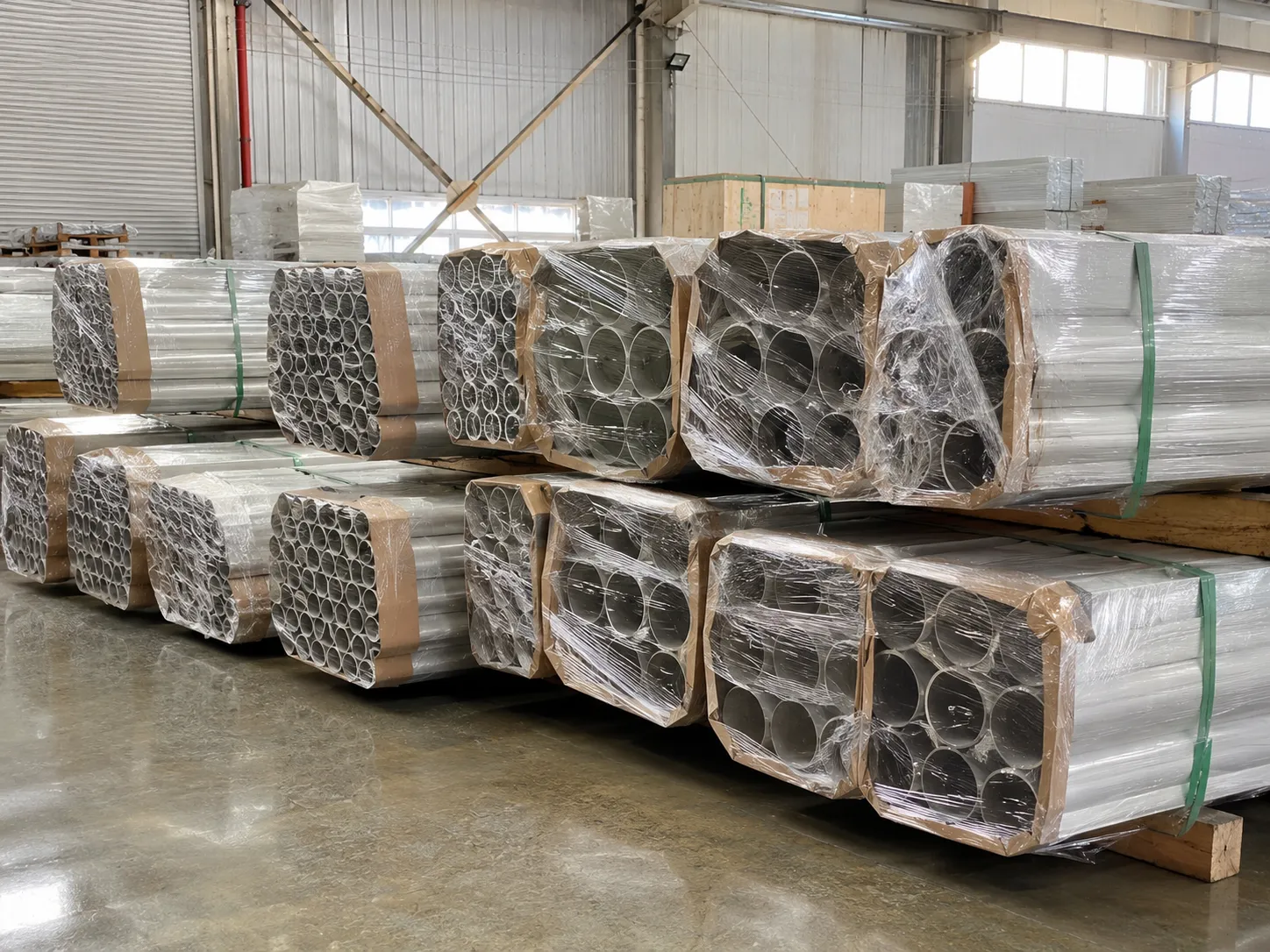

Export Packaging for Aluminum Pipe and Tube
To protect aluminum pipe during transportation, Gengfei Aluminum can provide bundled packaging, protective film wrapping, end protection, moisture-proof materials, wooden pallets or wooden cases according to order size and shipping requirements.
- Bundle packing for aluminum pipes and tubes
- Protective film or plastic wrapping available
- End protection to reduce impact damage
- Wooden pallet or wooden case support
- Steel or plastic strapping for stable loading
- Export-ready packaging for sea shipment
Frequently Asked Questions
What is 2024 aluminum pipe mainly used for?
2024 aluminum pipe is mainly used for aircraft structures, aerospace fittings, automotive racing frames, structural supports, military hardware and precision engineering components.
Is 2024 aluminum pipe suitable for outdoor use?
2024 aluminum has limited natural corrosion resistance. For outdoor, humid or corrosive environments, anodizing, alclad coating or other protective treatment is recommended.
What makes 2024 aluminum pipe different from 6061 aluminum pipe?
2024 aluminum pipe generally offers higher strength and better fatigue resistance than 6061, while 6061 provides better corrosion resistance and easier general-purpose fabrication.
How does 2024 aluminum compare with 7075 aluminum?
7075 aluminum usually provides higher ultimate strength, while 2024 aluminum is widely selected for aerospace structures requiring good fatigue resistance, machinability and balanced performance.
Can you supply alclad 2024 aluminum pipe?
Yes. 2024 aluminum pipe can be supplied with alclad or other surface protection options according to project requirements and availability.
Which tempers are available?
Common tempers include T3, T4, T6, T351 and T81. The suitable temper depends on strength requirements, processing method and final application.
Can you provide mechanical test reports?
Yes. Mill test certificates can be provided to verify chemical composition and mechanical properties according to order requirements.
