Automotive Heat Shield Aluminum Sheet & Coil
Mill finish aluminum sheet and coil for automotive heat shield processing, with 1xxx, 3xxx and 5xxx alloy family options and customizable thickness and width according to application requirements.
- Sheet and coil supply forms
- Mill finish without coating or pre-treatment
- 1xxx, 3xxx and 5xxx alloy family options
- Suitable for downstream stamping, forming and assembly
Automotive Heat Shields
Sheet / Coil
1xxx / 3xxx / 5xxx
1060 / 1100 / 3003 / 3004 / 5052 / 5754
O / H / Other
Mill Finish
Mill Finish Aluminum Material for Formed Automotive Heat Shields
Mill finish aluminum sheet and coil can be used as material for automotive heat shield processing. The material is supplied for downstream stamping, forming, assembly and, where required, additional surface treatment.
GF Aluminum supports alloy selection, thickness, width and supply-form discussions according to part design and processing requirements. Final specifications should be confirmed for each order.
Mill Finish Aluminum for Automotive Heat Shields
Automotive heat shields are used to help control heat transfer and protect nearby components from heat generated by engines, exhaust systems and other thermal sources. Aluminum is considered for these parts because it combines low density with formability and corrosion resistance.
GF Aluminum provides mill finish aluminum sheet and coil for downstream heat shield production. The supply condition is without coating or pre-treatment, allowing the material to be selected for stamping, forming, assembly and subsequent surface treatment according to the finished-part process.
| Product Type | Aluminum Sheet and Aluminum Coil | Application | Automotive Heat Shields and Thermal Protection Parts |
|---|---|---|---|
| Alloy Series | 1xxx, 3xxx and 5xxx Series | Typical Alloy Examples | 1060, 1100, 3003, 3004, 5052 and 5754 |
| Temper | O / H / Other tempers depending on application | Surface | Mill finish |
| Thickness | Available upon request; customizable | Width | Custom widths supported |
| Supply Condition | Without coating or pre-treatment | Downstream Use | Stamping, forming, assembly and additional surface treatment |
| Typical Applications | Engine bay heat shields, exhaust system heat shields, underbody thermal shields, EV and battery thermal protection | ||
Automotive Heat Shield Aluminum Sheet and Coil Specifications
The available specification depends on the selected alloy, temper, part design and forming process. Fixed dimensions and mechanical values should be confirmed for the specific order.
| Item | Information from Product Material | Notes |
|---|---|---|
| Supply Form | Sheet and coil | Select according to the downstream processing route. |
| Alloy Series | 1xxx, 3xxx and 5xxx | Typical alloy examples are 1060, 1100, 3003, 3004, 5052 and 5754. |
| Temper | O / H / Other tempers | Temper selection depends on the application and forming requirements. |
| Thickness | Available upon request | Customizable; confirm the required thickness for the finished part. |
| Width | Custom widths supported | Confirm the required width or coil condition before production. |
| Surface | Mill finish | Supplied without coating or pre-treatment. |
Aluminum Alloy Options for Heat Shield Parts
Alloy selection should follow the required forming behavior, strength, durability and final part design. The following alloy families and examples are listed in the product material.
1xxx Series
Typical examples include 1060 and 1100. This family is described for applications emphasizing formability and lightweight characteristics.
3xxx Series
Typical examples include 3003 and 3004. This family is described as providing a balance of strength, corrosion resistance and stable forming.
5xxx Series
Typical examples include 5052 and 5754. This family is described for heat shield parts requiring improved strength and durability.
Application-Based Choice
The final alloy and temper should be confirmed against part geometry, forming method and service requirements.
Material Features for Downstream Heat Shield Processing
These points describe the material characteristics and supply considerations stated in the product information. They are not fixed performance guarantees for every alloy, temper or thickness.
Forming Support
Suitable material selection can support stamping and forming of shaped heat shield structures.

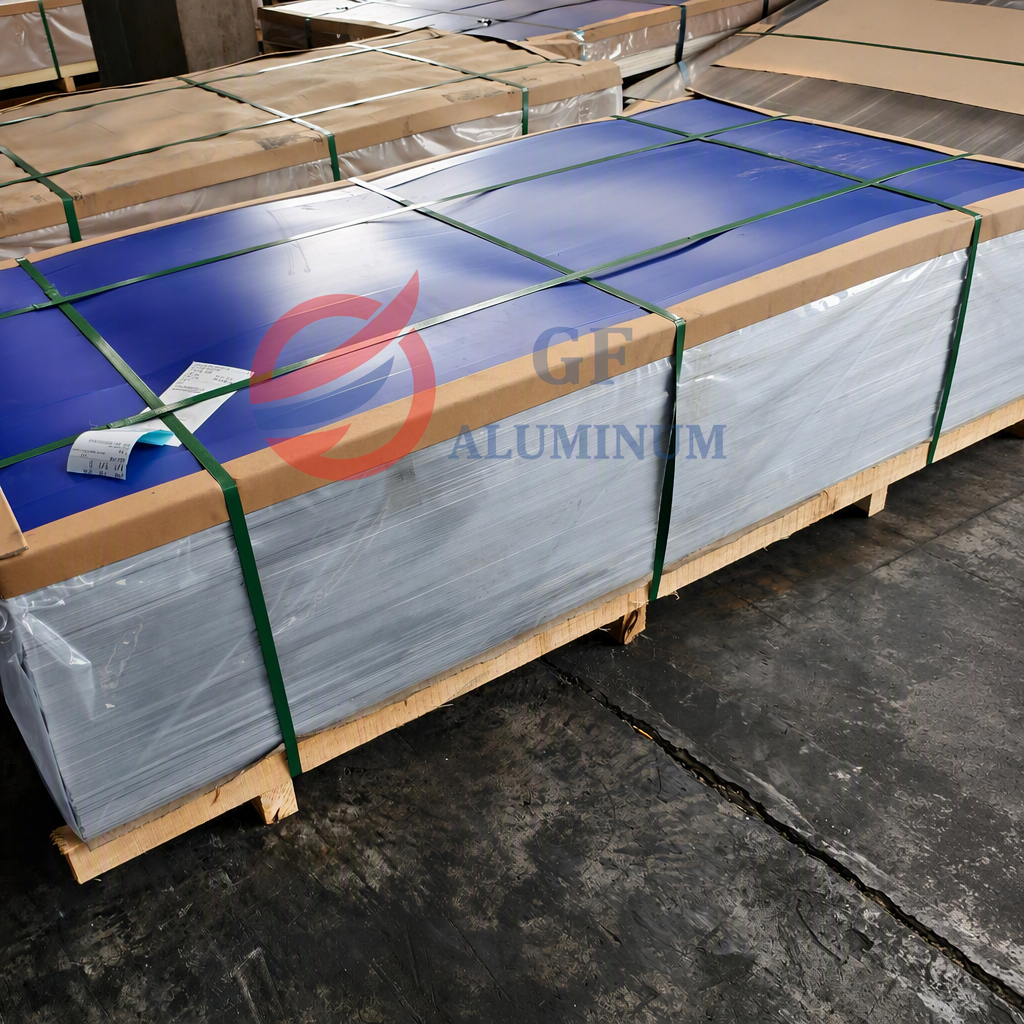

Sheet and Coil Supply
Both sheet and coil forms are listed for downstream automotive processing requirements.
Mill Finish Surface
The material is supplied without coating or pre-treatment for flexible downstream processing.
Weight-Sensitive Design
Aluminum’s low density can be considered when thermal protection parts must also address vehicle weight.
Custom Widths
Custom width support is listed for projects with different part layouts and processing requirements.
Alloy Flexibility
1xxx, 3xxx and 5xxx alloy families provide options for different forming and durability priorities.
Assembly Preparation
Flat sheet and coil can be processed into parts with bends, ribs, openings and mounting features.
Further Treatment
Additional surface treatment can be considered after the supplied mill finish, subject to the finished-part process.
Automotive Heat Shield Applications
The material information identifies the following automotive thermal protection applications. Part geometry, alloy, temper and thickness should be selected for the specific design.
- Engine Bay Heat Shields: material for formed parts positioned near engine-bay heat sources.
- Exhaust System Heat Shields: material for panels used around exhaust-related thermal sources.
- Underbody Thermal Shields: material for thermal protection structures installed in underbody areas.
- EV and Battery Thermal Protection: material option for battery-related thermal protection designs that require suitable forming and assembly characteristics.
Downstream Stamping, Forming and Assembly
Mill finish aluminum sheet and coil are supplied for downstream processing. The selected alloy, temper, thickness and width should match the forming method and the geometry of the finished heat shield.
- Stamping and forming of shaped heat shield panels
- Custom width selection for part layout and production needs
- Alloy selection from 1xxx, 3xxx and 5xxx series options
- Forming of bends, shallow ribs, openings and mounting features
- Assembly preparation for automotive thermal protection parts
- Additional surface treatment after mill finish where required by the finished-part process

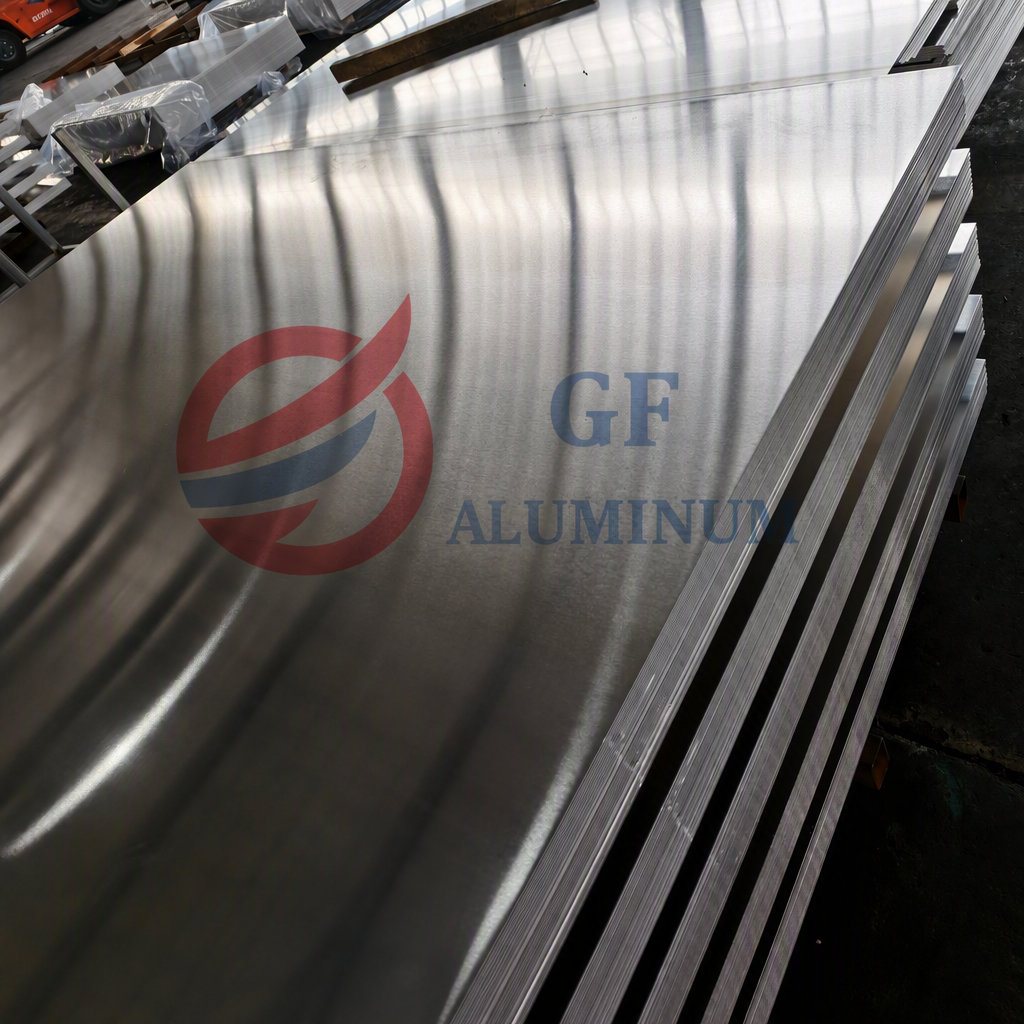

Mill Finish Surface Without Coating or Pre-Treatment
The product is supplied with a mill finish and without coating or pre-treatment. This condition gives the downstream processor flexibility to select forming, assembly and additional surface treatment according to the finished heat shield design.
- Sheet and coil supply forms
- Mill finish surface
- Without coating or pre-treatment
- 1xxx, 3xxx and 5xxx alloy family options
- Thickness available upon request
- Custom widths supported
