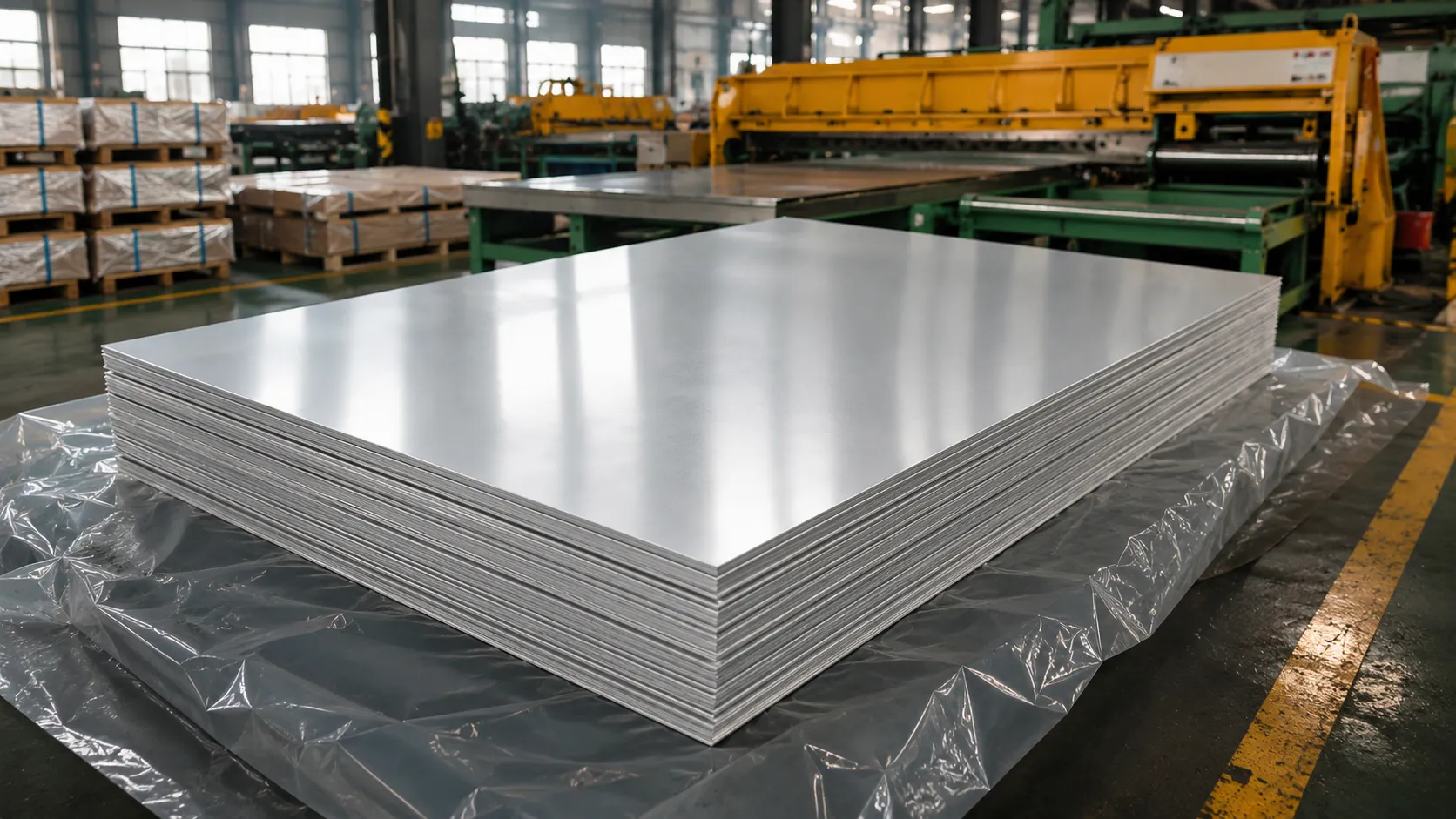

2017 Aluminum Sheet and Plate
2017 aluminum sheet and plate is a high-strength, heat-treatable Al-Cu alloy for applications requiring good mechanical strength, machinability and fatigue resistance.
- High-strength 2xxx aluminum alloy
- O, T3, T4, T351 and H112 tempers available
- Custom cutting and surface treatment available
- Suitable for aerospace, automotive, mold and machinery parts
2017
2xxx Al-Cu
O / T3 / T4 / T351 / H112
1.0mm – 600mm
800mm – 2650mm
Cutting / Slitting / Surface Treatment
High-Strength Heat-Treatable Aluminum Plate for Precision Applications
2017 aluminum sheet and plate is a 2xxx series Al-Cu alloy with high mechanical strength, good machinability and reliable fatigue performance. It is commonly used for aerospace components, automotive parts, molds, truck wheels, propeller parts and precision industrial components.
Gengfei Aluminum supplies 2017 aluminum plate in O, T3, T4, T351 and H112 tempers. Thickness, width, length, cutting size, surface finish and export packaging can be customized according to project requirements.
2017 Aluminum Sheet and Plate Overview
2017 aluminum plate is a high-strength aluminum-copper alloy. Compared with general-purpose aluminum alloys, 2017 provides higher mechanical performance and better machinability, making it suitable for components that require strength, stability and precision machining.
This alloy is widely used in structural and machined parts where load-bearing performance and fatigue resistance are important. It can be supplied as sheet, plate or custom cut plate according to the required thickness, width and length.
| Product Type | Aluminum Sheet, Aluminum Plate, Custom Cut Plate | Alloy Grade | 2017 |
|---|---|---|---|
| Alloy Series | 2xxx Series Aluminum-Copper Alloy | Available Tempers | O, T3, T4, T351, H112 |
| Thickness | 1.0mm – 600mm | Width | 800mm – 2650mm |
| Length | 500mm – 16000mm | Surface Finish | Mill finish, brushed, polished, coated, anodized |
| Processing | Cutting, slitting, edge processing, custom size | Packaging | Export wooden pallet / seaworthy packing |
| Typical Applications | Aerospace components, automotive parts, molds, truck wheels, propellers and precision industrial machinery parts | ||

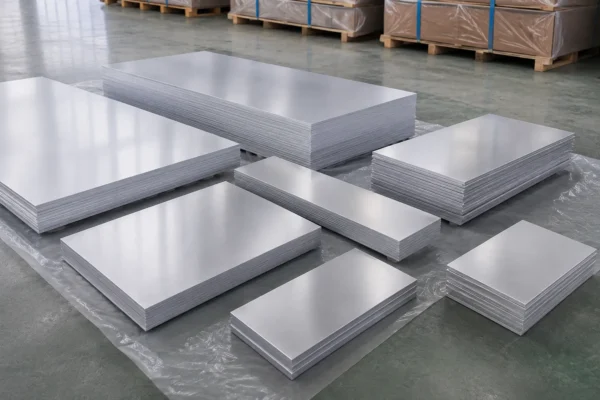

2017 Aluminum Sheet / Plate Specifications
Specifications can be adjusted based on alloy, temper, thickness, width, length, tolerance and application requirements.
| Alloy Series | Grade | Temper | Thickness | Width | Length | Typical Applications |
|---|---|---|---|---|---|---|
| 2xxx Series | 2017 | O, T3, T4, T351, H112 | 1.0mm – 600mm | 800mm – 2650mm | 500mm – 16000mm | Molds, truck wheels, aerospace components, propellers, machined parts |
Typical Mechanical Properties
The following values are typical reference ranges. Final values may vary depending on temper, thickness and production condition.
| Grade | Temper | Thickness | Tensile Strength Rm | Yield Strength Rp0.2 | Elongation A50mm |
|---|---|---|---|---|---|
| 2017 | O, T3, T4, T351, H112 | 1.0mm – 600mm | 380 – 430 MPa | 290 – 350 MPa | 12% – 20% |
Advantages of 2017 Aluminum Plate
2017 aluminum is mainly selected when strength, machining performance and fatigue resistance are key requirements.
High Strength
Suitable for high-load parts and structural components that require reliable mechanical performance.
Good Machinability
Works well for milling, drilling, cutting and precision machining processes.
Fatigue Resistance
Suitable for components exposed to repeated mechanical loads or dynamic stress.
Multiple Tempers
Available in O, T3, T4, T351 and H112 tempers for different processing needs.
Custom Size
Thickness, width, length and cutting size can be customized for project requirements.

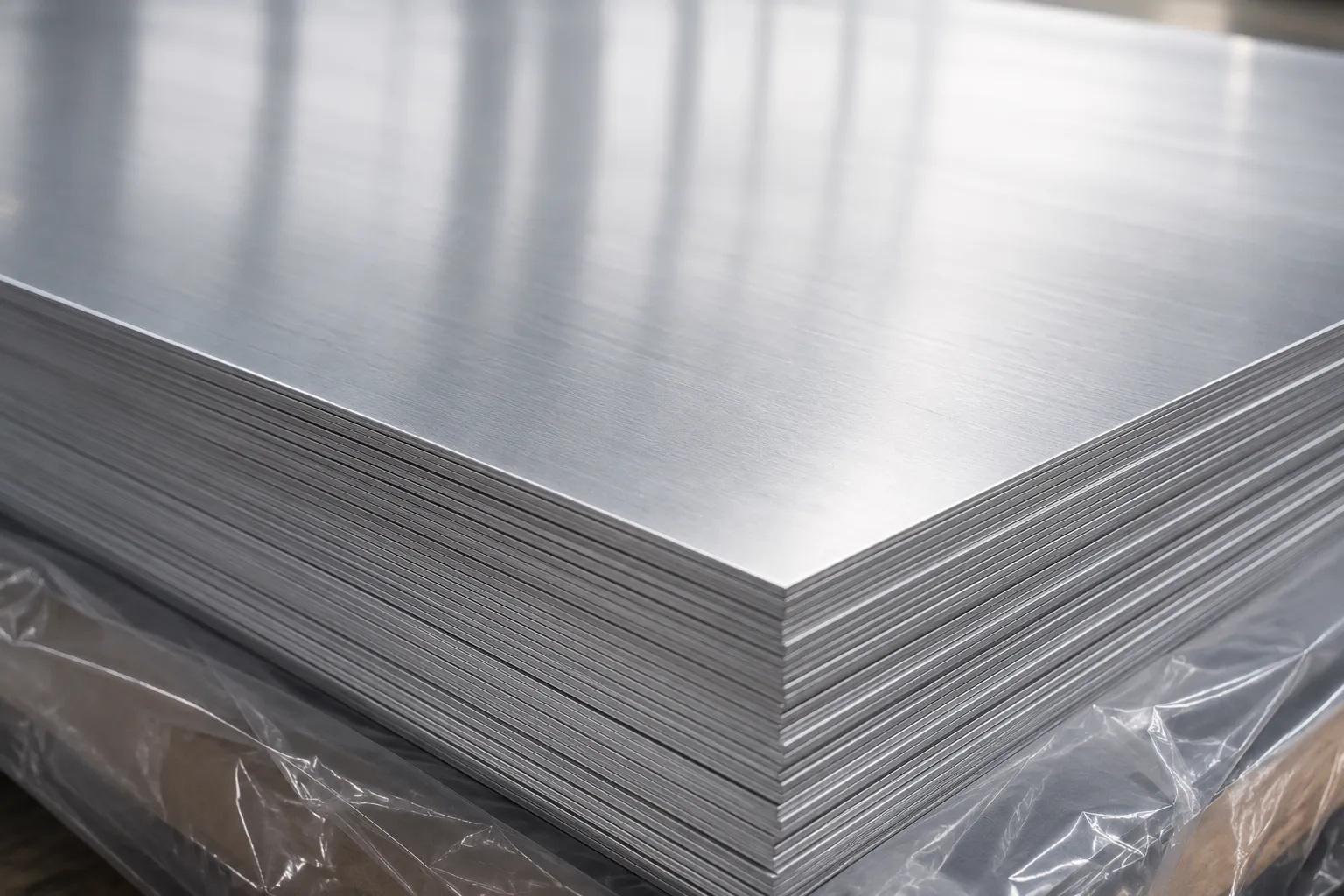

Surface Options
Mill finish, brushing, polishing, coating and anodizing can be supplied as required.
Industrial Use
Applicable to aerospace, automotive, mold, machinery and other precision industries.
Export Packaging
Protective wrapping, wooden pallets and seaworthy packing are available for shipment.

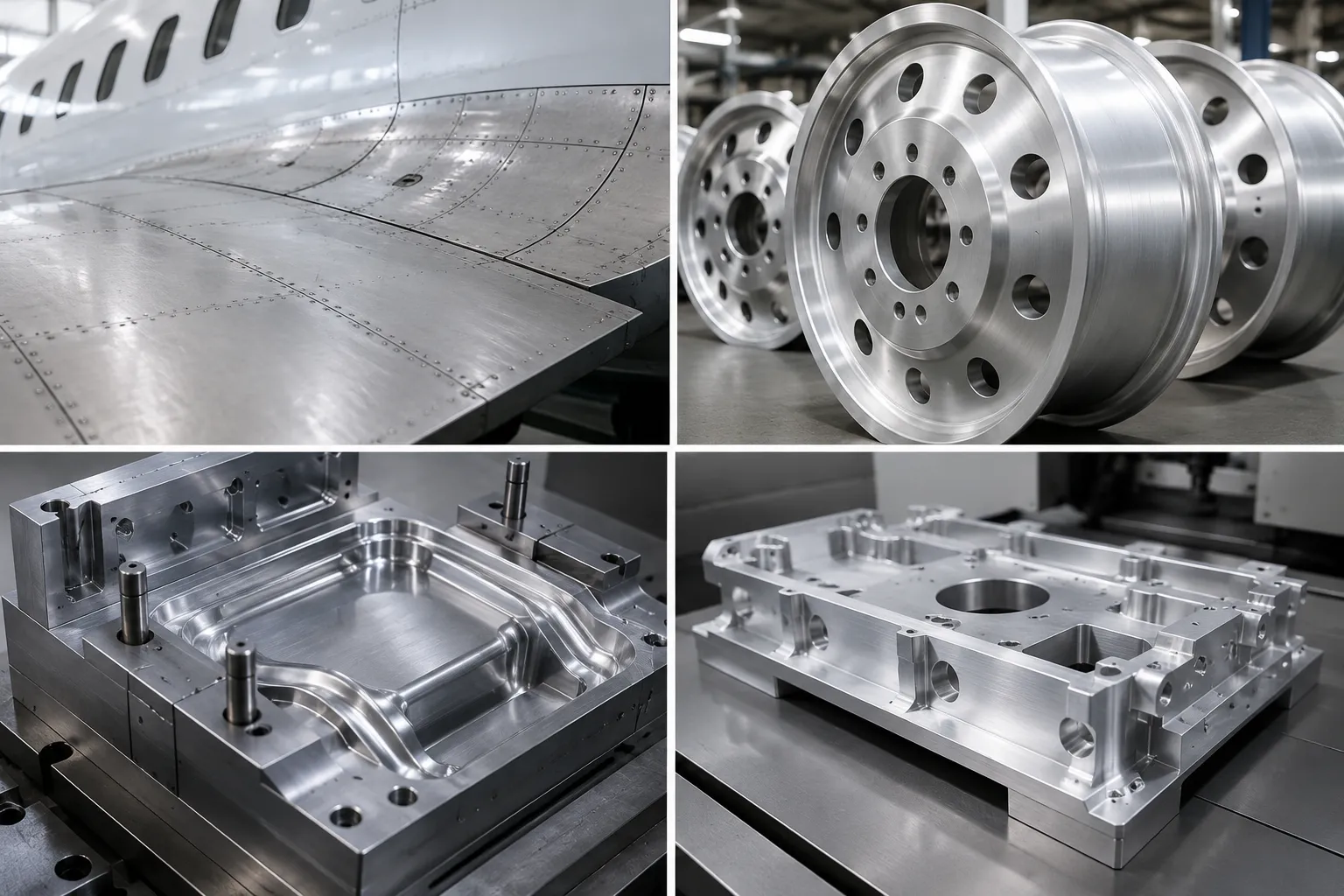

Applications of 2017 Aluminum Sheet and Plate
2017 aluminum plate is used for machined and structural parts where high strength and precision are important.
- Aerospace: structural parts, aircraft components, wing and fuselage-related parts.
- Automotive: truck wheels, mechanical components and high-stress automotive parts.
- Mold Manufacturing: mold plates, tooling bases and precision machined components.
- Industrial Machinery: parts requiring strength, dimensional stability and machinability.
- Propeller Components: selected propeller and rotating parts with proper design requirements.
- Special Equipment: high-strength components for demanding mechanical environments.

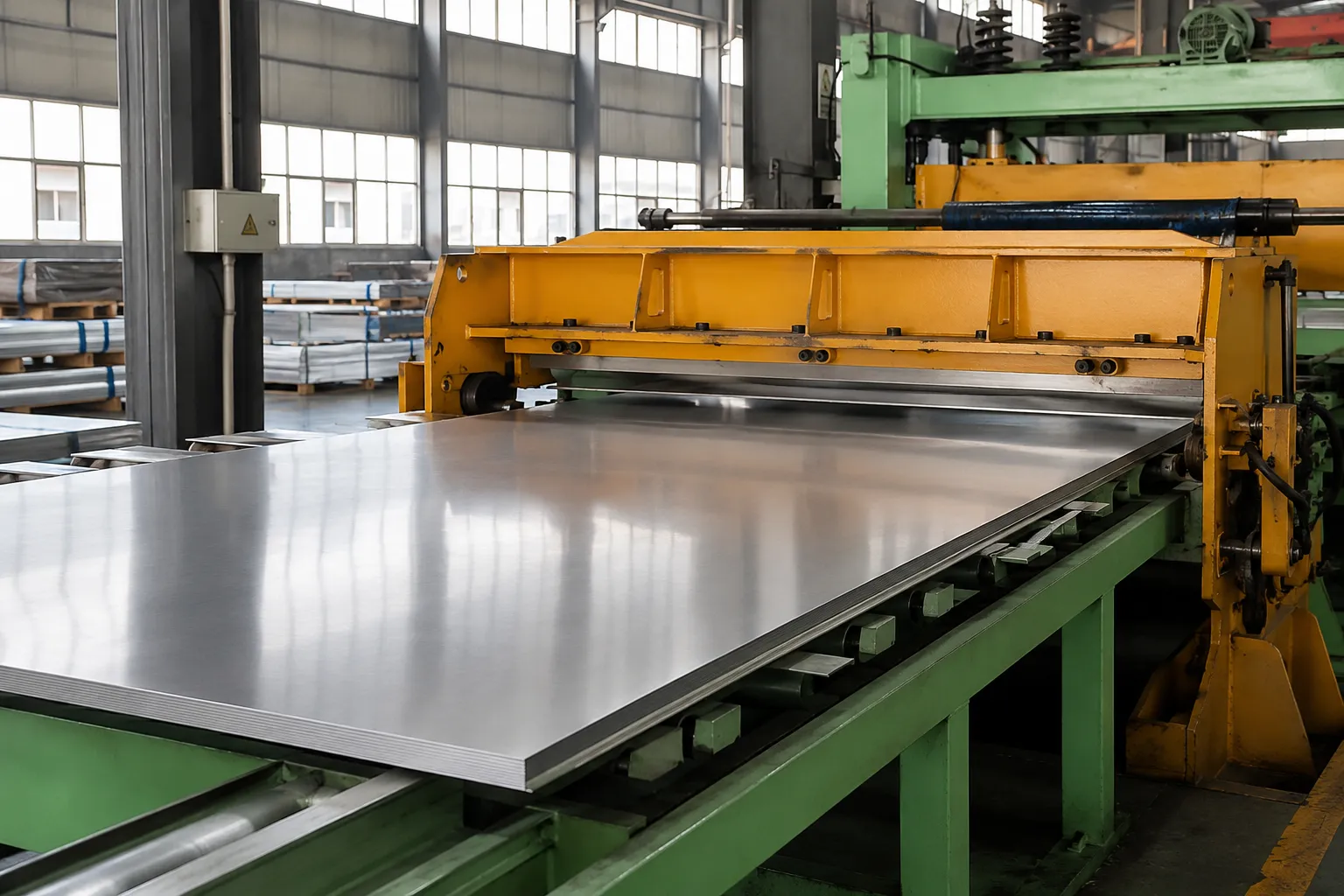

Custom Processing and Surface Treatment
Gengfei Aluminum can supply 2017 aluminum plate in standard sizes or custom cut sizes. Processing support helps buyers reduce additional handling and improve project efficiency.
- Custom cutting to required length and width
- Slitting and edge processing support
- Mill finish, brushed, polished, coated or anodized surface
- Protective film and surface protection options
- Wooden pallet and seaworthy export packaging
- Packaging photos and shipment document support
Comparison with Other Aluminum Alloy Sheets
Different aluminum alloy series are selected based on strength, corrosion resistance, forming, welding and machining requirements.
| Alloy Series | Main Components | Key Characteristics | Typical Applications |
|---|---|---|---|
| 1xxx Series | Pure Aluminum | High conductivity, good corrosion resistance, low strength | Electrical parts, heat sinks, packaging, reflectors |
| 2xxx Series | Al-Cu | High strength, good machinability, heat-treatable | Aerospace, molds, automotive parts, machined components |
| 3xxx Series | Al-Mn | Good formability, weldability and weather resistance | Roofing, cladding, decorative panels, general fabrication |
| 5xxx Series | Al-Mg | Excellent corrosion resistance and good weldability | Marine, tanks, shipbuilding, pressure vessels |
| 6xxx Series | Al-Mg-Si | Balanced strength, machinability and weldability | Frames, structures, transportation and industrial parts |
| 7xxx Series | Al-Zn-Mg-Cu | Very high strength, often requires surface protection | Aerospace, racing parts, high-end molds and tooling |

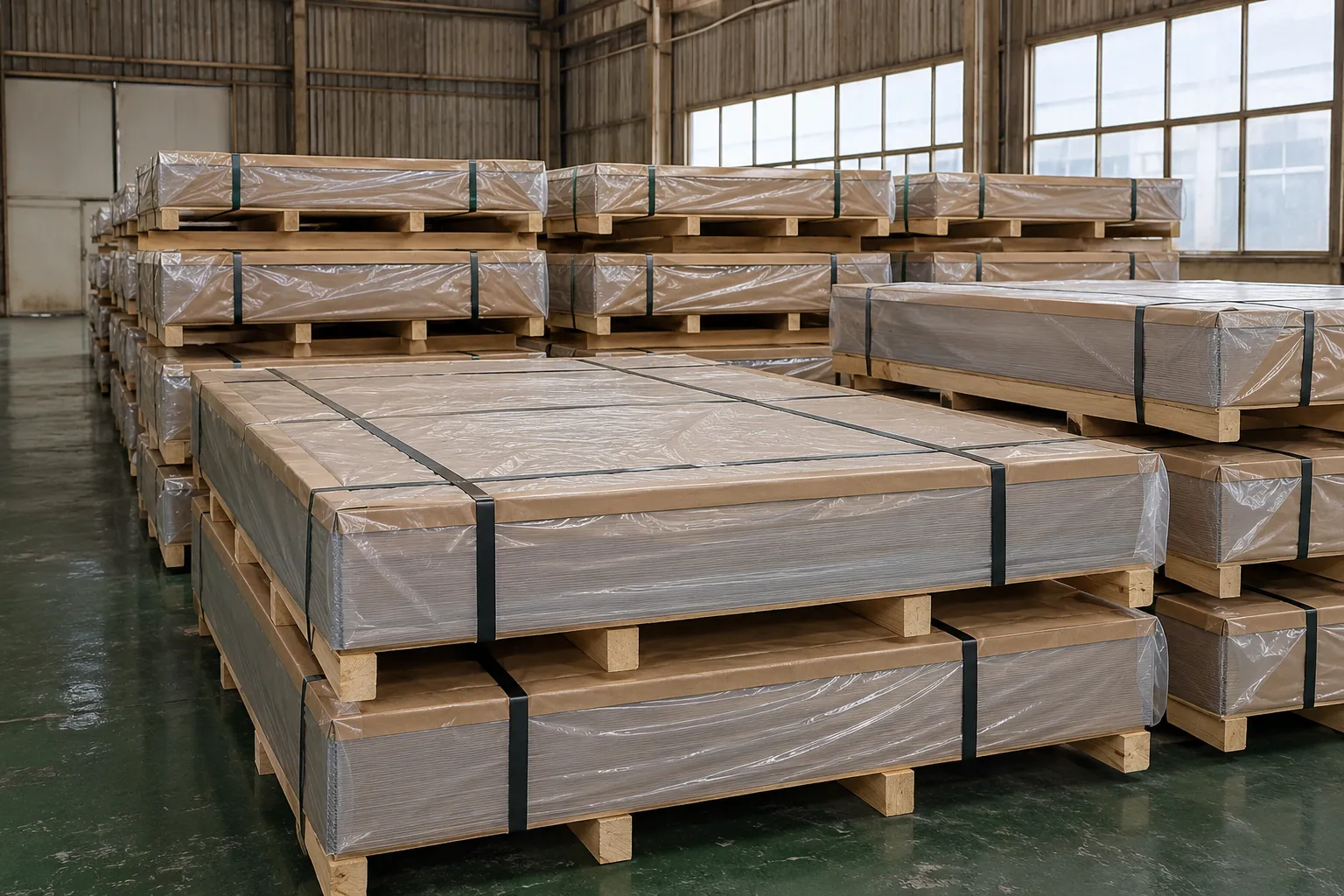

Export Packaging for Aluminum Sheet and Plate
To protect aluminum sheet and plate during transportation, Gengfei Aluminum can provide protective film, moisture-proof wrapping, wooden pallets, steel strapping and seaworthy packaging according to order requirements.
- Protective surface film available
- Moisture-proof and dust-proof wrapping
- Wooden pallet or wooden case support
- Steel or plastic strapping for stable loading
- Container loading support for export shipments
Frequently Asked Questions
What is 2017 aluminum plate mainly used for?
It is mainly used for aerospace parts, automotive components, molds, truck wheels, machinery parts and other applications requiring strength and machinability.
Can you supply custom cut sizes?
Yes. Thickness, width, length and cutting size can be customized according to your drawings or project requirements.
Which tempers are available?
Common tempers include O, T3, T4, T351 and H112. The suitable temper depends on strength, processing method and final application.
Is 2017 aluminum suitable for corrosion environments?
2017 aluminum is mainly selected for strength and machinability. For stronger corrosion protection, anodizing or coating can be considered. For marine corrosion resistance, 5xxx series aluminum may be more suitable.
